Our Products
SDNR Valve
SDNR Flanged / Threaded
- Dual function: isolation + non-return
- Prevents reverse flow and system damage
- Compact and robust design
- Low maintenance and long service life
- 1. Body Material – CS / DCI / CI / Bronze
- Internals – SS316 / SS304 / SS410 / Bronze
- Seat – Metal to Metal / Soft customized
- 2.Range- DN 15 To DN 200 for flanged
- DN 15 To DN50 for Threaded
- 3. Class – PN 10 , PN16 , #150 , #300
- & DIN stand for Marine Applications.

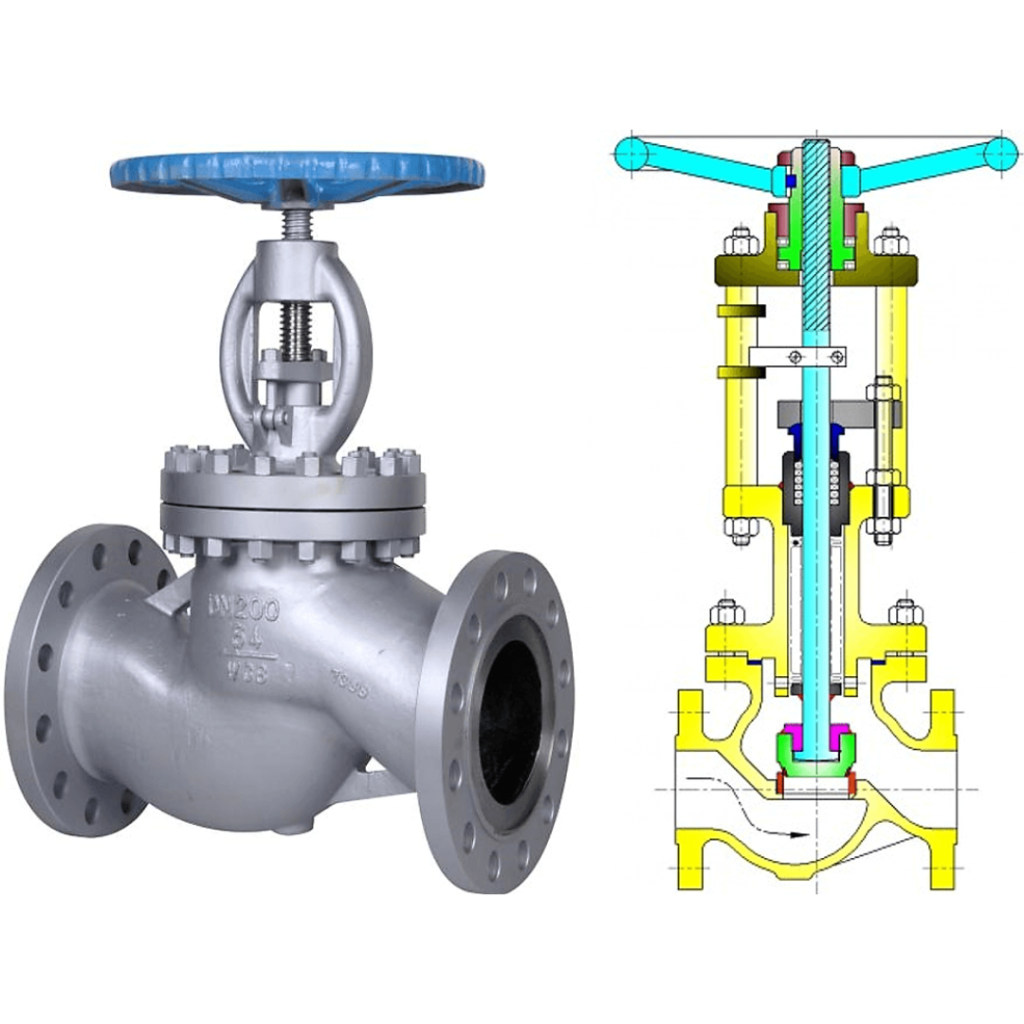

Globe Valve
Globe Valve
- Excellent flow control and throttling capability
- Tight sealing with minimal leakage
- Suitable for high pressure and temperature
- Easy maintenance and repair
- 1. Body Material – CS / DCI / CI / Bronze
- Internals – SS316 / SS304 / SS410 / Bronze
- Seat – Metal to Metal / Soft customized
- 2. Range- DN 15 To DN 200 for flanged
- DN 15 To DN50 for Threaded
- 3. Class – PN 10 , PN16 , #150 , #300
- & DIN stand for Marine Applications.
Ball Valve
Ball Valve
- Quick open/close operation
- Bubble-tight shut-off
- Low pressure drop
- Long service life with minimal wear
- 1. Body Material – CS / DCI / CI / Bronze
- Internals – SS316 / SS304 / SS410 / Bronze
- Seat – Metal to Metal / Soft customized
- 2.Range- DN 15 To DN 200 for flanged
- DN 15 To DN50 for Threaded
- 3. Class – PN 10 , PN16 , #150 , #300
- & DIN stand for Marine Applications.
Butterfly Valve
Butterfly Valve
- Space-saving and lightweight design
- Cost-effective for large sizes
- Easy installation and operation
- Available in wafer, lug, and flanged types
- 1. Body Material – CS / DCI / CI / Bronze
- Internals – SS316 / SS304 / SS410 / Bronze
- Seat – EPDM / NBR
- 2.Range- DN 50 To DN 500
- DN 15 To DN50 for Threaded
- 3. Class – PN 10 , PN16 , #150
- & DIN stand for Marine Applications.

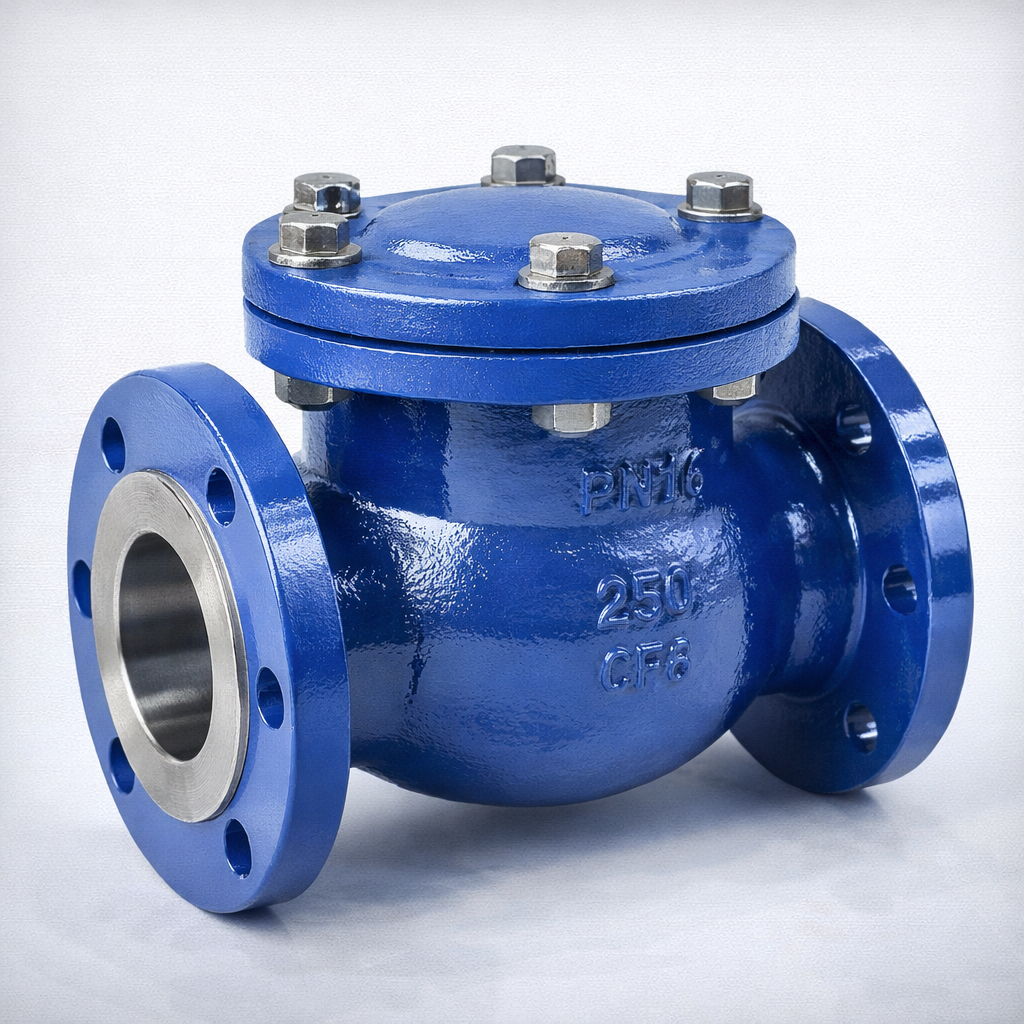

Check Valve
Check Valve
- Automatic operation (no external control)
- Prevents backflow and pressure surges
- Enhances system safety and reliability
- Available in multiple designs and materials
- 1. Body Material – C.S / S.S/ Bronze
- Internals – CF8M/CF8/ SS410/ Bronze
- Seat – Metal to Metal / Soft Seated
- 2.Range- DN 25 To DN 200 for flanged
- 1/2″ To 2″ for Threaded
- 3. Class – PN 10 , #150 , #300
- & DIN stand for Marine Applications.
Lift Check Valve
Lift Check Valve
- High sealing efficiency
- Suitable for high-pressure systems
- Vertical or horizontal installation
- Robust and durable construction
- 1. Body Material – CF8/ C.S/ Bronze
- Internals – SS304 / CF8M/ Bronze
- Seat – Metal to Metal / Soft
- 2.Range- DN 25 To DN 200 for flanged
- 1/2″ To 2″ for Threaded
- 3. Class – PN 10 , #150 , #300
- & DIN stand for Marine Applications.
